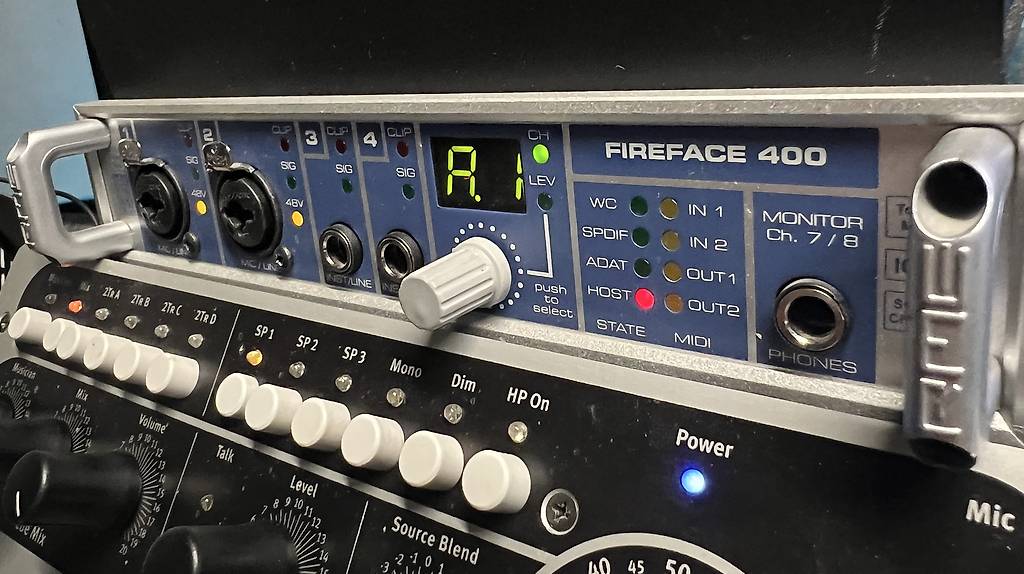

RME FireFace 400

150.-

09.06.2026

8633, Wolfhausen

Technical Specifications
Input AD: 6 x 1/4" TRS (4 x Line, 2 x Line/Instrument), 2 x XLR/TRS Combo connector (2 x Mic/Line), all servo-balanced.

Output DA: 6 x 1/4" TRS, servo-balanced, DC-coupled signal path. 1 x 1/4" TRS unbalanced

Input Digital: 1 x ADAT optical or SPDIF optical, SPDIF coaxial (AES/EBU compatible)

Output Digital: 1 x ADAT optical or SPDIF optical, SPDIF coaxial (AES/EBU compatible)

MIDI: 2 x MIDI I/O via breakout cable (4 x 5-pin DIN jacks), for 32 channels low jitter hi-speed MIDI

Dynamic range AD: 110 dB RMS unweighted, 113 dBA

THD AD: < -100 dB (< 0.001 %)

THD+N AD: < -98 dB (< 0.0012 %)

Crosstalk AD: > 110 dB

Dynamic range DA: 110 dB RMS unweighted, 113 dBA (unmuted)

THD DA: -100 dB (0.001 %)

THD+N DA: -96 dB (0.0015 %)

Crosstalk DA: > 110 dB

Input/Output level for 0 dBFS @ Hi Gain: +19 dBu

Input/Output level for 0 dBFS @ +4 dBu: +13 dBu

Input/Output level for 0 dBFS @ -10 dBV: +2 dBV

Sample rate internally: 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4, 192 kHz

Sample rate externally: 28 kHz - 200 kHz

Frequency response AD/DA, -0.1 dB: 5 Hz - 20.4 kHz (sf 44.1 kHz)

Frequency response AD/DA, -0.5 dB: 1 Hz - 43.3 kHz (sf 96 kHz)

Frequency response AD/DA, -1 dB: 1 Hz - 80 kHz (sf 192 kHz)

Driver support
Windows 2000 SP4, Windows XP, Vista (32 and 64 bit), 7 (32 and 64 bit): Full ASIO multi-client operation of WDM, MME (not XP64), GSIF 2.0 and ASIO 2.0. WDM (DirectSound) with stereo and multi-Channel support. Full hot-plugging. Up to 3 units operational. Mac OS X (10.3 or higher) PPC and Intel: Core Audio, Core MIDI. Full hot-plugging. Up to three units operational.
