Ortofon T-20 trasformatore per MC
180.-
06.07.2026
8702, Zollikon
Trasformatore passivo Ortofon T-20 per testine Moving Coil MC.
Funziona perfettamente. Si collega alle presa phono MM.
Lo vendo perché ho comprato un pre-phono attivo.
Senza imballo originale.
escription
The T-20 transformer has been engineered on the same principle as the T-30 so it offers a high performance level.
Designed essentially for use with moving coil cartridges, which have an internal impedance of 3 ohm per channel, it can also be used with cartridges of different manufacture in the 2 to 4 ohm range.
The T-20 includes a bypass position for switching between moving coil and magnetic cartridges.
Specifications
Type of unit: transformer
Pick up impedance: 2 to 4 ohm
Output loading: 47k ohm / 150pf
Frequency response: 10Hz to 60kHz
Phase linearity: +-18 degrees
Gain: 32dB
Channel balance: 0.2dB
Channel separation: 50dB
Transformer type: toroidal
Shielding: permalloy + soft iron
Dimensions: 40 x 80 x 122mm
Funziona perfettamente. Si collega alle presa phono MM.
Lo vendo perché ho comprato un pre-phono attivo.
Senza imballo originale.
escription
The T-20 transformer has been engineered on the same principle as the T-30 so it offers a high performance level.
Designed essentially for use with moving coil cartridges, which have an internal impedance of 3 ohm per channel, it can also be used with cartridges of different manufacture in the 2 to 4 ohm range.
The T-20 includes a bypass position for switching between moving coil and magnetic cartridges.
Specifications
Type of unit: transformer
Pick up impedance: 2 to 4 ohm
Output loading: 47k ohm / 150pf
Frequency response: 10Hz to 60kHz
Phase linearity: +-18 degrees
Gain: 32dB
Channel balance: 0.2dB
Channel separation: 50dB
Transformer type: toroidal
Shielding: permalloy + soft iron
Dimensions: 40 x 80 x 122mm
- Preis CHF
- 180.-
- PLZ
- 8702
Ähnliche Inserate
Ortofon T-3000 MC Step-Up Transformer
1'120.-

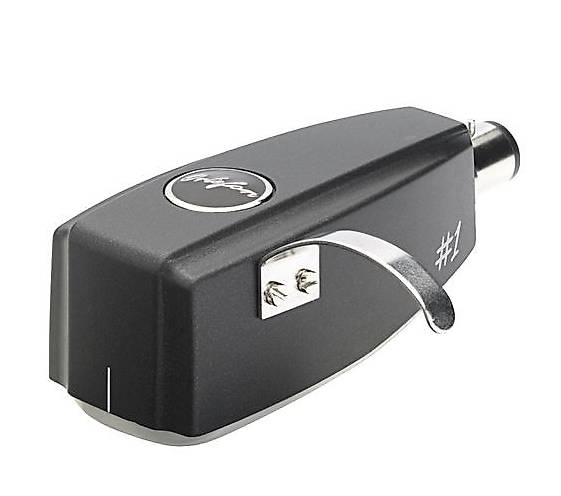

Ortofon SPU #1 E
659.-
Plattenspieler Harman Kardon T 40, selten und schön
369.-
Preamplificatore microfono, alimentazione Phantom
65.-
Magnat Röhrenverstärker MA 400
190.-
Sony Hi-Fi Vintage
150.-
Thorens TD 320 Mk2 - Mit Philips ELM GP351
499.-
Graham Slee Accession M MM-Phono-Vorstufe
1'050.-
T+A Stratos P20 3-Wege Bassreflex Kompaktlautspr. 90/140w
399.-
Amplificatore Technics SU-V500M2
60.-
Digital Optisch Koaxial Toslink zu Analog Audio Konverter
19.-
Körting - Radio Tuner Hifi -
150.-

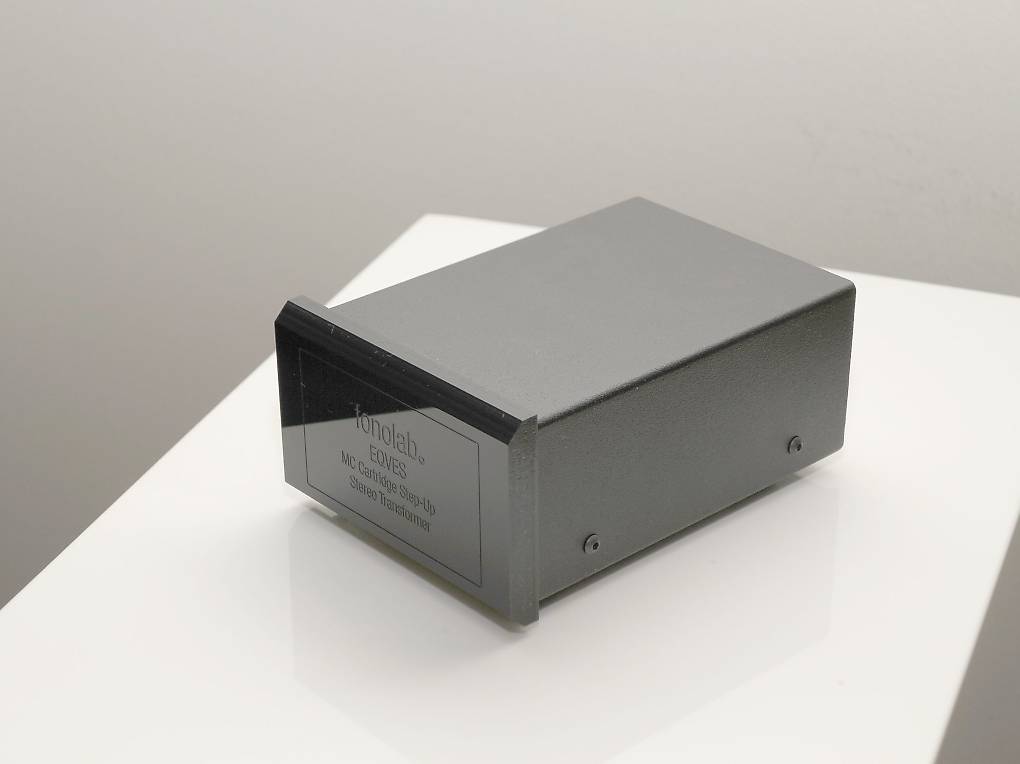

fonolab Phono MC Step-up Transformer
